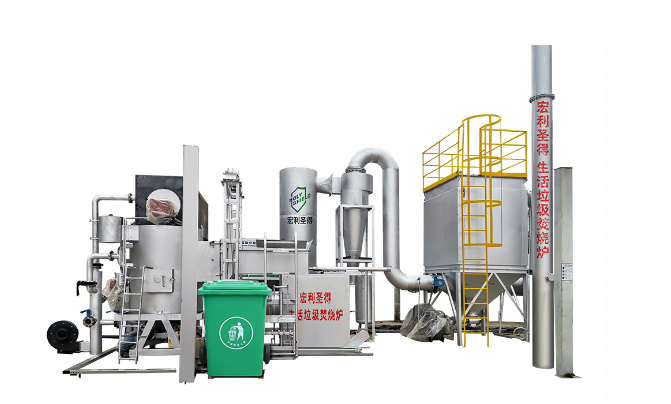

Municipal/domestic Waste Incinerator

Structure: vertical
Capacity:100kg-20T/Day
Equipment area (㎡): 80-200 (customizable)
Power (kw): 8.26-24.5 (customizable)
Chimney (mm): Φ325*12m-Φ425*12m (customizable)
Weight (kg): 7500-14500 (customizable)
Operating voltage V: 380 (customizable)

Product description

The domestic waste incinerator adopts the patented high-temperature pyrolysis gasification technology, which conforms to the 3T+E design principle; the entire system runs under negative pressure.

If the temperature of the primary combustion chamber is above 550℃, the burner will automatically shut down, and if the temperature of the secondary combustion chamber is above 850℃, the burner will automatically shut down. The whole operation process does not require fuel to assist combustion, which saves operating costs.

The system is fully enclosed, the flue gas does not leak, the combustion chamber temperature is stably controlled at 850-1200°C, and the flue gas residence time is ≥2s, so that the dioxin-like harmful substances are fully decomposed and discharged up to the standard.

Product features

: 01
Smokeless and odorless, meeting emission standards
The emission from the incinerator is smokeless and odorless, meeting the emission standards.

: 02
High temperature pyrolysis gasification technology
New high-temperature pyrolysis gasification technology, high-temperature incineration treatment, safe and pollution-free.

: 03
Simple structure and easy operation
Automatic control system, automatic temperature control, digital display, easy to operate and use.

Applicable place/waste

Solve the complex problem of garbage in towns and villages
Solve the problem of large amount of garbage in towns
Solve the problem of scattered and non-concentrated garbage in towns
Solve the problem of random dumping of garbage in towns

Product parameters

Model	Land area（㎡）	Power（kw）	Chimney（mm）	Weight（kg）	Operation voltage(V)
HLPG-2-1	80	8.26	Φ325*12m	75000	380
HLPG-3-1	100	9.26	Φ325*12m	90000	380
HLPG-5-1	150	15.2	Φ425*12m	12000	380
HLPG-10-1	200	24.5	Φ425*12m	14500	380

Combustion + Flue gas process

Combustion Process

01The sorted garbage enters the primary combustion chamber in batches at a predetermined time
02By controlling the amount of air intake, the garbage is dried, thermally decomposed and burned out in the primary combustion chamber, and ash and some small particles that cannot be thermally decomposed are discharged out of the furnace through the ash discharge device
03The flue gas generated during drying and thermal decomposition enters the secondary combustion chamber
04The combustible gas is fully decomposed by 2S at more than 850°C and discharged to the subsequent treatment process

Flue gas process

Stage1The high temperature gas discharged from the secondary combustion chamber is treated by the flue gas scrubber, and the temperature is reduced from 850°C to 180°C in 2s, which effectively overcomes the secondary synthesis conditions of dioxin; secondly, being atomized by the special nozzle , it performs synchronous disconnection Sulfur Denitrification.
Stage2Under the action of cyclone dust removal of the medium-efficiency dust collector, the particulate matter in the gas and the large particulate matter generated during the deacidification process would be separated from the cooled and desulfurized gas effectively.
Stage3The exhausted flue gas is then treated effectively by a high-temperature pulse bag dust collector to filter remaining dust, heavy metals, dioxins and other components attached to the fine particles to effectively ensure that the exhaust gas treatment meets the standard.
Stage4After precision filtration by the bag dust collector, the flue gas is discharged through the chimney under the action of the centrifugal fan.
