Before the sewage treatment at the Zhangwu Slaughterhouse in Liaoning, the slaughterhouse had a strong smell and the harmful substances contained in the rainwater exceeded the standard, which had a negative impact on the environment and human health. So we (holy shield) customized such a slaughter sewage equipment for them. This equipment adopts the process of solid-liquid separation + physicochemical + biochemical + sludge dewatering, simple operation, long life and good effect, and the processing capacity is 10-5000 m³/d .

Product Overview: Mainly used for the separation and removal of fine suspended solids with a density close to water. This equipment integrates the removal of BOD5, COD, NH3-N and other indicators, and the effluent reaches the first class B standard; small area, low energy consumption, installation and transportation Convenient; automatic control, no special management by personnel, simple operation, good effect and long service life.
parameter:
Material: carbon steel anti-corrosion or stainless steel
Processing capacity: 10-5000 m³/d
Power: 1-25kw
Custom processing: Yes
Sewage type: slaughter sewage (chicken slaughter)
Processing scale: 1000m³/d
Emission standard: into the pipeline network
Process: solid-liquid separation + physicochemical + biochemical + sludge dewatering
Project address: Panjin

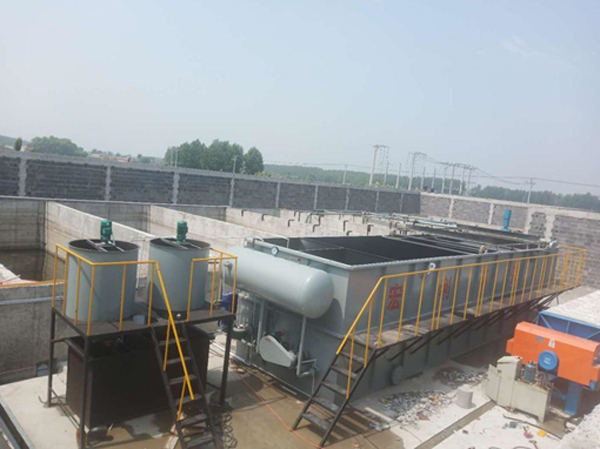

Liaoning Zhangwu Slaughterhouse: The sewage treatment capacity is 1000m³/d. The untreated sewage from the slaughterhouse has a strong odor, and the toxic and harmful substances in the sewage exceed the standard.
Equipment process: Waste water is collected by the collection pipe network, flows into the primary sedimentation tank, and separates impurities such as feces from the water by a solid-liquid separator. The sewage flows into the regulating tank by itself, and the water volume and water quality are adjusted by the regulating tank. Then the sewage pump lifts the dissolved air flotation machine for physical and chemical treatment to remove suspended solids in the water. The effluent enters the intermediate pool and then is pumped to the biochemical equipment to remove BOD5, COD, NH3-N and other indicators, and the effluent reaches the first-level B standard.
Holy shield is a high-tech environmental protection enterprise integrating wastewater treatment production, learning and research capabilities. It is currently the teaching practice base of Qingdao University of Science and Technology, the scientific research transformation base of University of Shanghai for Science and Technology and the production, education and research base of Yunnan University. It has won more than 30 patent certifications., Tailor-made sewage treatment system solutions for customers.
